PA15

L1P L/G

PIPER PA-15 Vagabond WAGAERO Wag-a-Bond

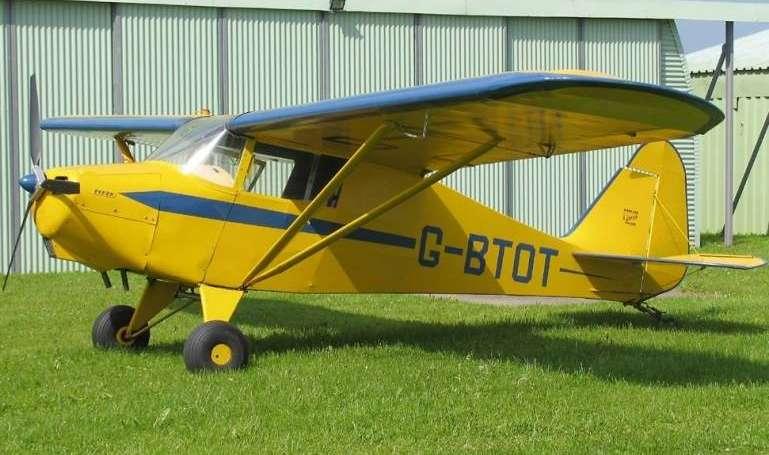

PIPER PA-15 Vagabond WAGAERO Wag-a-Bond PA15 aircraft photograph

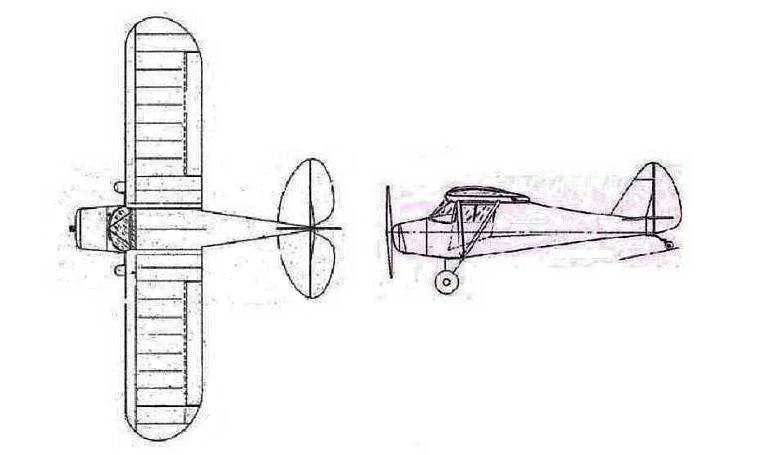

PIPER PA-15 Vagabond WAGAERO Wag-a-Bond PA15 3D view
Technical Data
Wing Span (m)8.9
Length (m)5.7
Height (m)1.8
MTOW (t)0.7
Fuel Capacity (ltr)100
Maximum Range (Nm)500
Persons On Board2
Take Off Distance (m)120
Landing Distance (m)230
Absolute Ceiling (x100ft)125
Optimum Ceiling (x100ft)100
Maximum Speed (kts/M)88
Optimum Speed (kts/M)80
Maximum Climb Rate (ft/min)500
Manufacturers
  • PIPER PA-15 Vagabond
  • WAGAERO Wag-a-Bond
