N5

L1P L/G

HONGDU N-5 NANCHANG N-5

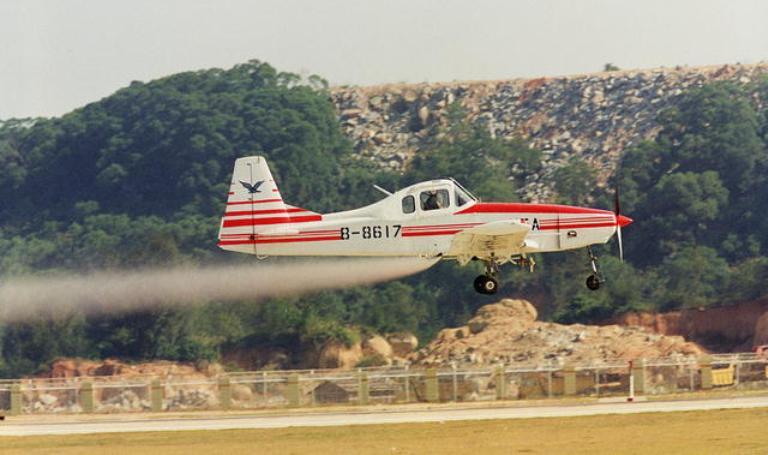

HONGDU N-5 NANCHANG N-5 N5 aircraft photograph

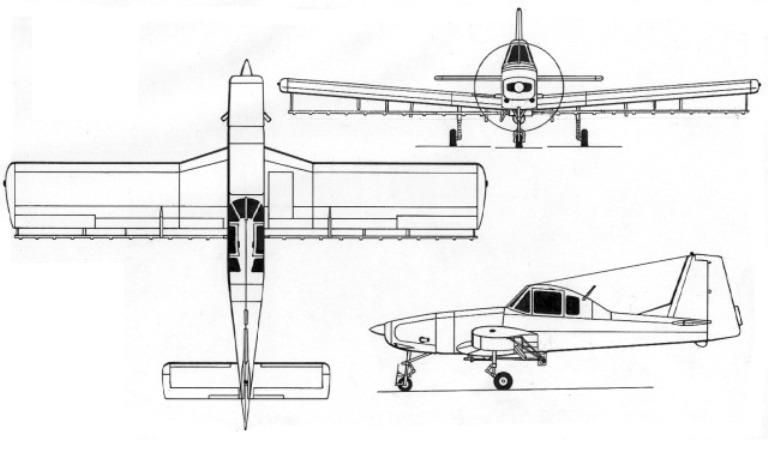

HONGDU N-5 NANCHANG N-5 N5 3D view
Technical Data
Wing Span (m)13.4
Length (m)10.4
Height (m)3.7
MTOW (t)2.4
Fuel Capacity (ltr)250
Maximum Range (Nm)600
Persons On Board1
Take Off Distance (m)570
Landing Distance (m)380
Absolute Ceiling (x100ft)165
Optimum Ceiling (x100ft)80
Maximum Speed (kts/M)110
Optimum Speed (kts/M)80
Maximum Climb Rate (ft/min)730
Manufacturers
  • HONGDU N-5
  • NANCHANG N-5
